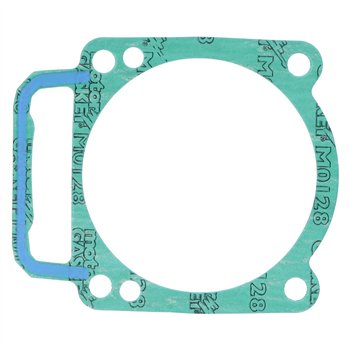

Athena cylinder base gasket. FR/RR .020 84-99 Evo B.T.

Unlock Peak Engine Performance with Athena, Cylinder Base Gasket. FR/RR .020"

Get your bike running smoother and stronger with the Athena, cylinder base gasket. FR/RR .020". This gasket ensures a perfect seal between your cylinder and crankcase, preventing leaks and maintaining optimal compression. Designed for riders who demand reliability without breaking the bank, Athena delivers precision engineering that keeps your engine firing on all cylinders.

Features & Benefits of Athena, Cylinder Base Gasket. FR/RR .020"

• Thickness: .020" for precise fit and improved sealing
• Material: Durable composite designed to withstand high temperatures and pressure
• Compatibility: Fits both front and rear cylinders (FR/RR)
• Leak Prevention: Eliminates gasket blowouts and oil leaks for consistent engine performance
• Easy Installation: Perfectly cut to save time and hassle during rebuilds or repairs

Why choose Athena? This gasket balances affordability with top-tier engineering, making it a smart upgrade for riders who want dependable sealing without overspending. Its advanced composite material handles heat and pressure like a champ, so your engine stays tight and efficient ride after ride.

Act fast! The Athena, cylinder base gasket. FR/RR .020" is in high demand among motorbike enthusiasts and often sells out quickly. Don’t miss your chance to secure this essential part for your next engine rebuild or maintenance session.

Ready to boost your bike’s performance? Add the Athena, cylinder base gasket. FR/RR .020" to your cart now and experience the difference of a perfect seal on every ride!

3" to 3-1/2" bore. Front/rear. 0.5mm (.020") reinforced fiber. Type 'B'. Standard thickness. Asbestos–free, composed of Aramid and mineral fibers with NBR rubber. Offers good sealing ability with fluids and gases and is adaptable in a wide range of applications. OEM replacement reference 16774-86A. Note: Type 'A' and 'B' Evolution base gaskets explained. There are 2 types of cylinder base gaskets for Evolution models available. For convenience sake we call them 'type A' (early style) and 'type B' (late style). - Type A' gasket: Was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly. They will fit 86-22 Evo XL, but stick out at the cylinder base. This can be a problem with silicone beaded base gaskets. - Type B' gasket: Was introduced on Evolution XL Sportster models in 1986, and will fit all Evo XL models, but also all 84-99 Evo 1340cc models although the Big Twin cylinder base is a bit larger than the gasket. The 'type B' is the only gasket type that 'The Factory' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models. Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations. Gaskets for front & rear cylinder are identical. Only difference between the 'A' & 'B' gaskets is the outside perimeter.
