Motogadget Chronoclassic rev counter -10,000 rpm

Experience Precision and Style with the Motogadget Chronoclassic Rev Counter - 10,000 RPM

Get the perfect blend of classic design and modern accuracy with the Motogadget Chronoclassic rev counter - 10,000 rpm. This sleek rev counter delivers precise engine RPM readings, helping you optimize performance and protect your bike’s engine without breaking the bank. Whether you’re tuning your ride or cruising the streets, this affordable instrument keeps you in control with style.

Features & Benefits of the Motogadget Chronoclassic Rev Counter - 10,000 RPM

• Accurate RPM Measurement up to 10,000: Stay informed with precise engine speed data, perfect for both vintage and modern motorcycles.
• Classic Analog Look with Modern Electronics: Combines timeless style with reliable digital technology for easy reading in any light.
• Compact and Lightweight Design: Fits seamlessly on your handlebars without adding bulk or weight.
• Easy Installation: Compatible with most ignition systems, making setup quick and hassle-free.
• Durable Build: Weather-resistant casing ensures long-lasting performance on every ride.

Why settle for less when you can have precision and style at an affordable price? The Motogadget Chronoclassic rev counter is engineered to give you reliable feedback, helping you shift smarter and ride safer.

Limited Stock Alert – Don’t Miss Out!

This sought-after rev counter is flying off the shelves due to its unbeatable combination of style, accuracy, and price. Act fast—once it’s gone, you’ll have to wait for the next batch. Upgrade your bike’s cockpit today and enjoy the ride like never before.

Ready to upgrade your ride? Add the Motogadget Chronoclassic rev counter - 10,000 rpm to your cart now and experience precision RPM tracking that every motorbiker deserves!

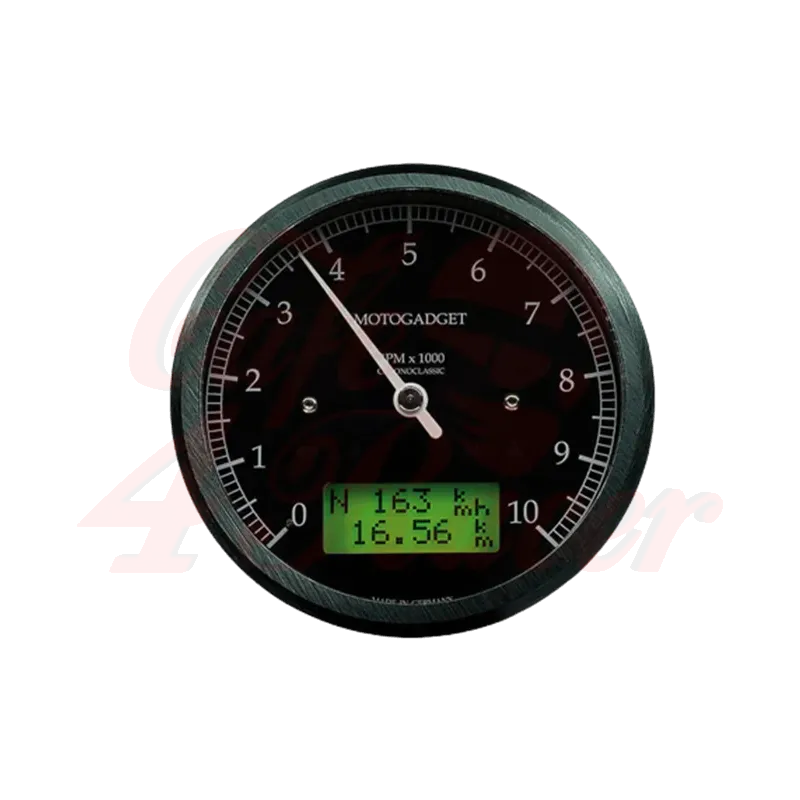

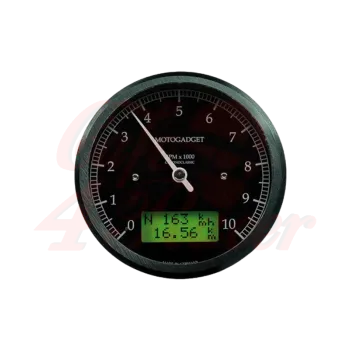

Chronoclassic rev counter 0-10,000 RPM, body black and ring color selectable, green LCD display

The Chronoclassic from motogadget is a digital multifunction instrument in a classic round case. Technically identical to the motoscope classic, the Chronoclassic is characterized by its black dial and white pointer. The design is reminiscent of old Smiths instruments. The identical instrument is also available as an analogue speedometer (see analogue speedometer series CLASSIC).

Technical specifications:
Installation diameter: 80 mm
Total diameter (screw ring): 85 mm
Depth without cable gland: 34 mm
Weight: about 230g
Fastening: 3 x M4 threaded socket
Current consumption during operation: approx. 200 mA (depending on the load)
Current consumption in idle state: 0 mA
Operating Voltage: 9V-18V
Operating temperature: -20° +80°C

Function:
Tachometer (analogue/pointer) = 0 – 10 krpm
Speedometer (LCD) = 0 – 350 km/h or mph
Tripmeter = up to 999 km or mi
Total kilometers (adjustable) = up to 250,000 km or mi
Driving time display = 0 – 99:99:99 h/min/s
Tachometer (on LCD) = 0 – 20,000 rpm
adjustable speed warning (int. LED and ext. shift light) = 0 – 20,000 rpm
On-board voltage display = 9 V - 18 V
NEW! Undervoltage warning = LED flashes when on-board voltage falls below approx. 11V - replaces charge control lamp
Air temperature* (optional instead of water temp.) = -20 - 80 °C / -4 - 176 °F with high/low warning
Water temperature* (optional instead of air temp.) = 40 - 120 °C / 104 - 248 °F with high/low warning
Oil temperature* = 40 - 160 °C / 104 - 320 °F with high/low warning
Oil pressure* = 0.5 - 8 bar / 8 - 116 psi with high/low warning
Timing = 0 - 100 km/h or 0 - 60 mph 0.0 - 99.9 sec.
instantaneous acceleration = (-20.0) - 20.0 m/s2
Average speed = 0 – 350 km/h or mph
Maximum speed = 0 – 350 km/h or mph
Maximum speed = 0 – 20,000 rpm
max. positive acceleration = 0 – 20.0 m/s2
max. negative acceleration = 0 – (- 20.0) m/s2
Gear indicator = N, gear 1 - 6
green control LED = idle (N)
yellow control LED = turn signal left, right
blue indicator LED = high beam
red warning LED = various warning functions external (e.g. oil pressure switch), internal (speed, temperature, pressure, voltage)
output for ext. Shift light lamp = switching capacity max. 1.4 A

Scope of delivery:
Instrument with approx. 55 cm connection cable
complete plug connection, fuse
Speedometer sensor M5 x 0.5 (fine thread) with 150 cm connection cable
2 x magnets
mini button
3x VA screws M4
detailed installation and operating instructions

A notice:
Please note that temperature and pressure sensors must be ordered separately (see accessories).
