HIGHSIDER LED daytime running lights with parking light function

222-501

New product

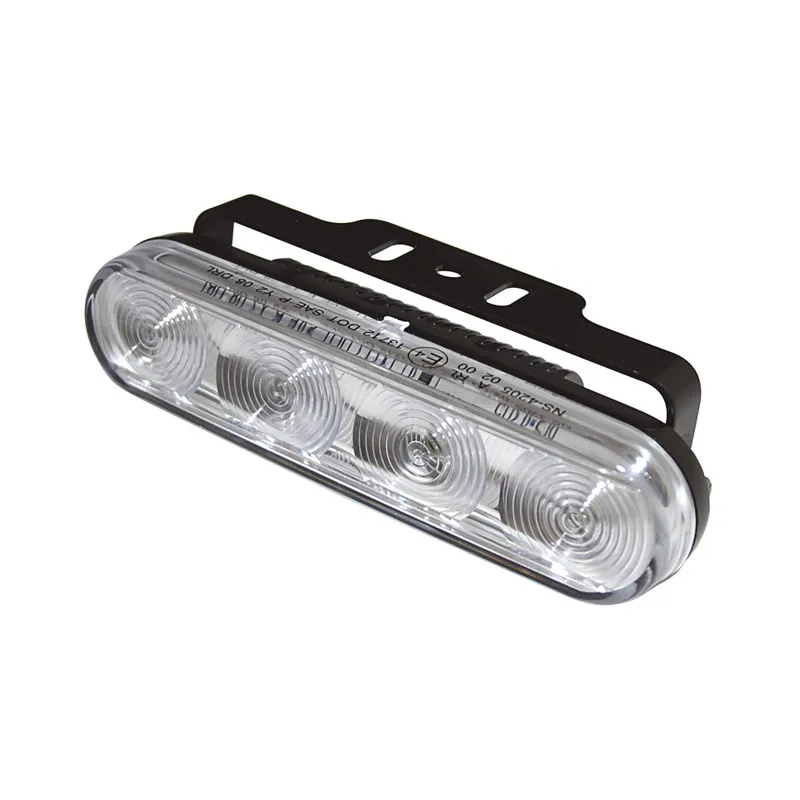

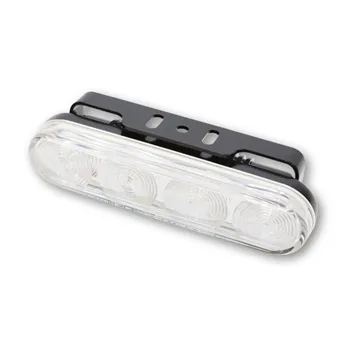

HIGHSIDER LED daytime running lights with 4 LEDs and parking light function, rectangular aluminum housing, black, with universal bracket, E-approved

More details

$49.95

delay in delivery 1-3 days

- +


More info
HIGHSIDER LED daytime running lights

The LED daytime running lights with 4 power LEDs and parking light function ensure that other road users see bikers well. Packed in a matt black, rectangular aluminum housing, the daytime running light is made for universal mounting. With this daytime running light, the light switches to dimmed parking light mode when you switch to low beam, E-approved.

See and be seen - give your bike personality! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make you one
sensational highlight!

Dimensions:
Width: 150mm
Height: 38mm
Depth: 39.5mm

Technical specifications:
Current consumption at 12.5 volts: max. 0.4 amps (corresponds to approx. 5 watts)
Luminous flux at 12 volts: 250 lumens

Connections:
Black wire: Ground (-)
Red cable = plus (+), is connected to switched on plus (ignition).
White cable = is connected to the low beam control line.

Scope of delivery: 1 piece

Note 1 - with existing light switch:
The operation of the HIGHSIDER LED daytime running lights requires a manually switched low beam via a light switch.
The daytime running light must be connected in such a way that it goes out when the main headlight is switched on (exception: activating the headlight flasher). The rear tail light must always remain switched on, ie set to ignition plus.
Caution: Any additional parking lights on the vehicle must be disconnected, as a maximum of 2 parking lights may be used on the vehicle.


Note 2 - without existing light switch:
The daytime running lights can also be used on vehicles without a light switch. For this purpose, e.g. B. the following components are required:
Switch: Art. No. 240-044
HIGHSIDER DRL CONTROL- BOX CB1: Art. No. 208-108 (switches between low beam and daytime running lights)

Data sheet
Type Led
Material Aluminum
Color Black
Vehicle brand UNIVERSAL
Shape Square
Height 38.00
Execution Daytime running lights
Depth 40.00
Illuminant LEDs
Glass Clear
