DENALI cansmart kit d3 fog tiger

Illuminate Your Ride with DENAL CANSMART KIT D3 FOG TIGER

Experience unmatched visibility and safety on every ride with the DENAL CANSMART KIT D3 FOG TIGER. Designed for motorbikers who demand clear, powerful lighting without breaking the bank, this kit delivers bright, focused fog lights that cut through harsh weather and low-light conditions. Ride confidently knowing you’re equipped with reliable illumination that enhances your road presence and keeps you safe.

Features & Benefits of DENAL CANSMART KIT D3 FOG TIGER

• Advanced CAN Bus Compatibility: Seamlessly integrates with your bike’s electrical system to prevent error codes and flickering.
• Compact, Durable Design: Built tough to withstand vibrations, rain, and mud, ensuring long-lasting performance on any terrain.
• Powerful LED Output: Provides crisp, white light that improves visibility in fog, rain, and darkness without blinding oncoming traffic.
• Easy Installation: Plug-and-play setup means you’re ready to ride in minutes, no complicated wiring needed.
• Energy Efficient: Low power consumption protects your bike’s battery while delivering maximum brightness.

Technical Specs:

• Light Type: LED Fog Light
• Voltage: 12V DC
• Power Consumption: 18W per light
• Color Temperature: 6000K (Daylight White)
• Material: Aluminum housing with impact-resistant lens

Demand for the DENAL CANSMART KIT D3 FOG TIGER is soaring among riders who want dependable lighting without the premium price tag. Stock is limited due to high popularity, so don’t miss your chance to upgrade your bike’s fog lights with this trusted Denali innovation.

Ready to ride safer and see clearer? Add the DENAL CANSMART KIT D3 FOG TIGER to your cart now and light up the road ahead with confidence!

DENALI CANsmart™ Kit D3 consisting of:

• DENALI CANsmart 2.0 Plug-n-Play Controller (1x)
• DENALI D3 LED Fog Light (2x)

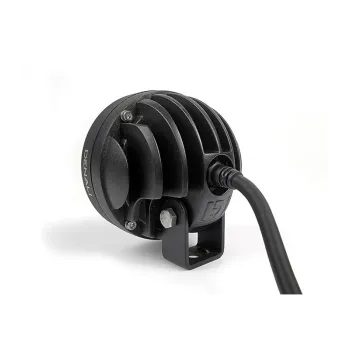

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing street-legal fog light to hit the market. Our proprietary fog optics were painstakingly engineered to reach the maximum allowable candela (beam distance) for each of the regulated lighting zones for both the North American SAE/DOT and European Union ECE regulations! The result is a truly unique lens that performs as well as it looks, capable of generating a super-crisp fog beam that is 450 feet long by 350 feet wide at 1 lux (per pair)! No other street-legal fog light even comes close!

Our D3 is also available in our signature TriOptic™ beam system that provides a spot and hybrid beam option (in the same kit) for drivers wanting uncompromised light output when you need it most.

Features

• Best in class street-legal fog beam (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2800 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won\'t crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Amber & selective yellow lenses available (sold separately)

Beam Performance (pair)

• Beam Distance (at 1 lux): 450 feet (137 meters)
• Beam Width (at 1 lux): 300 feet (91 meters)

Specs (single pod)

• Pod Size: 3.5\" (90mm) Round x 3.0\" (76mm) Deep
• LED: (4x) 11 Watt Cree XP-P LEDs
• Power Draw: 40 Watts (3.3 Amps)
• Lumens: 2800
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Fog Lens Certifications: SAE/DOT J583 & ECE R19

What’s in the Box?

• (1x) D3 LED Fog Light Pod
• (1x) Hinge Mounts with M8 Stainless Steel Hardware
• (1x) Wiring Pigtail

Product Description

Harness the flexibility and intelligence of your Triumph motorcycle\'s CANbus electrical system to make installation of accessories drastically easier with the new and improved DENALI CANsmart™ Controller GEN II.

The DENALI CANsmart™ Controller provides plug-n-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled right from your Triumph\'s hand controls or the CANsmart™ Accessory Manager Software.

The CANsmart\'s four circuits are preprogrammed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb horn, and our B6 auxiliary brake light.

Gen II - More Features, More Power, More Versatile

Unlike the Gen I CANsmart, all four circuits of the Gen II can provide a full 10 amps of continuous power and each circuit can be configured to run any accessory type. The maximum power draw for the whole unit remains at 30 amps continuous. The Gen II also features two new auxiliary light settings. You can now modulate your auxiliary lights for added conspicuity, and set your left and right side lights to independently cancel when you activate your corresponding turn signal.


Features

• High/Low Sync - Set auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.
• ON/OFF and Dim - Independently control two sets of lights ON/OFF and change intensity level (for both day and night) right from your original vehicle switches.
• Modulate Lights - Set auxiliary lights to modulate to increase your visibility to other motorists.
• Flash to Pass - Need to get someone\'s attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.
• Cancel With Turn Signal - This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal.
• Inverse Flashing With Hazards - This features flashes your auxiliary lights inversely to your hazard lights, increasing visibility during road side emergency\'s.
• Plug ...
