DENALI dialdim univ kit d7

Unleash Ultimate Control with DENAL DIALDIM UNIV KIT D7

Get ready to upgrade your ride with the DENAL DIALDIM UNIV KIT D7, the perfect solution for motorbikers who demand precision and reliability without breaking the bank. This universal kit delivers smooth, responsive control over your bike’s lighting and accessories, making every ride safer and more enjoyable. Designed by DENAL, a trusted name in motorcycle gear, it combines practical functionality with unbeatable affordability.

Features and Benefits of DENAL DIALDIM UNIV KIT D7

• Universal Compatibility: Fits most motorcycle models, so you can easily install it without hassle.
• Durable Construction: Built with rugged materials that withstand harsh weather and rough rides.
• Easy Installation: Comes with clear instructions and all necessary hardware for a quick setup.
• Precise Dial Control: Allows you to adjust lighting intensity smoothly, enhancing visibility and safety.
• Compact Design: Saves space on your handlebars while providing full functionality.
• Cost-Effective Upgrade: Offers premium features at a price that won’t drain your wallet.

Whether you’re cruising city streets or hitting rugged trails, the DENAL DIALDIM UNIV KIT D7 gives you the confidence to control your bike’s lighting with ease and accuracy. Don’t settle for less—equip your ride with this smart, affordable upgrade today!

DENALI Dialdim Kit D7 Universal consisting of:

• DENALI DialDim Lighting Controller (DNL.WHS.20500) (1x)
• DENALI D7 LED Additional Lighting 10W - By Unit (DNL.D7.050) (2x)
• DENALI Frame & Crash Bars Light Mount Ø21-29mm Black

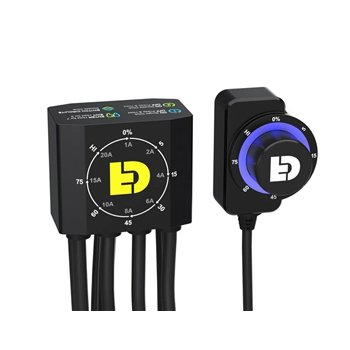

DialDim™ Lighting Controller (1x)

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync
Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be \"off\" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent \"washing out\" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

DENALI D7 LED Additional Lighting 10W - By Unit (DNL.D7.050) (2x)

At over 7500 lumens, the DENALI D7 light kit is one of the brightest LED lights under 11,5cm period. A pair of D7s feature 7 high-intensity 10 watt LEDs that are focused through a proprietary single piece optic that was specifically engineered to create a full bodied spot beam that can reach over 365m at one lux. The robust heatsink and Active Thermal Management™ work together to keep this high powered lamp cool enough to maintain maximum light output when you need it most.

Features :

• High-Intensity Series Cree LEDs outputting 7665 lumens per kit DrySeal™ Submersible Waterproof light and switch housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won\'t crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

Specifications :

• Power Draw: 5Amps
• Beam Distance: 365m
• Beam Width: 38m
• Raw Lumens: 7665
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes

DENALI Frame & Crash Bars Light Mount Ø21-29mm Black (1x)

This DENALI Motorcycle Engine Guard/Crash Bar Light Mount Kit allows fitment of any DENALI LED Lights to engine guards, crash bars, or any tube 21mm-29mm in diameter. These light mounts have a unique octagonal inner profile that allow the clamps to securely grip a wide range of tube diameters and include an optional, fully rotatable mounting shelf to create a super versatile ...
