DENALI dialdim kit ducati dl4

Unleash Your Ducati’s Potential with the DENAL DIALDIM KIT DUCATI DL4

Get ready to transform your Ducati with the DENAL DIALDIM KIT DUCATI DL4, designed to deliver unmatched performance without breaking the bank. This kit offers precise tuning and enhanced control, making every ride smoother and more responsive. Perfect for riders who want reliable upgrades that truly make a difference on the road.

Key Features and Benefits of the DENAL DIALDIM KIT DUCATI DL4

• Optimized Fuel Mapping: Improves throttle response for quicker acceleration and better fuel efficiency.
• Plug-and-Play Installation: Easy setup with no complex wiring—get back on the road faster.
• Compact Design: Fits seamlessly into your Ducati DL4 without adding bulk or weight.
• Durable Components: Built to withstand harsh riding conditions and long-term use.
• Enhanced Engine Control: Fine-tunes ignition timing for smoother power delivery and reduced engine strain.

With the DENAL DIALDIM KIT DUCATI DL4, you’re investing in a smart upgrade that boosts your bike’s performance and reliability while keeping costs down. Ride smarter, ride stronger.

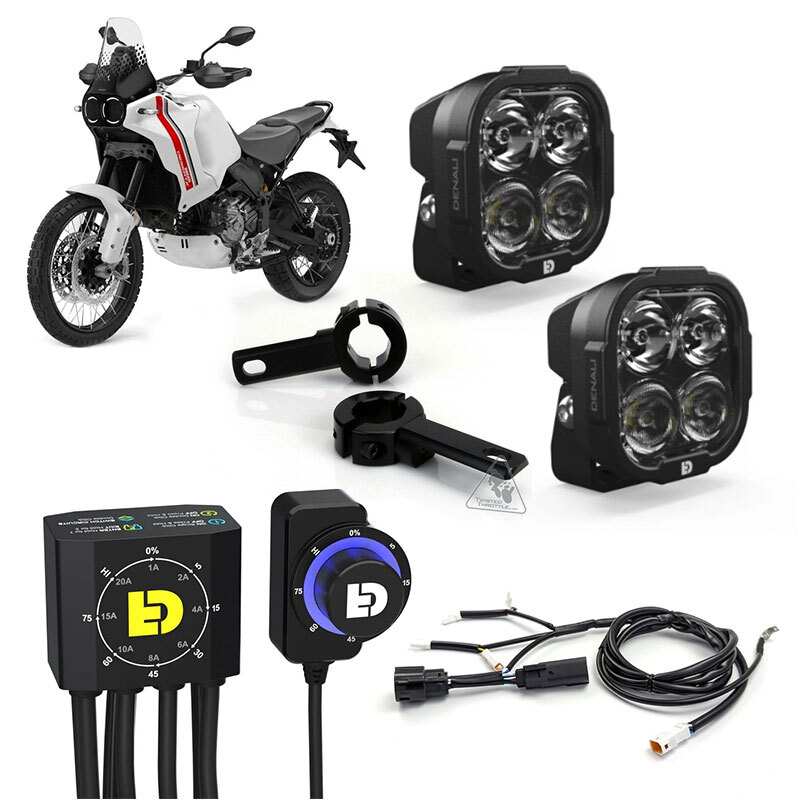

DENALI DialDim™ Kit D4 consisting of:

• DENALI DL4 Hybrid Driving Light - By Unit (DNL.DL4.050W) (2x)
• DENALI DialDim Lighting Controller (1x)
• DENALI Plug & Play DialDim Wiring Adapter (1x)
• DENALI Frame & Crash Bars Light Mount Ø21-29mm Black (1x)

DESCRIPTION

DENALI DL4 Hybrid Driving Light - By Unit (DNL.DL4.050W) (2x)

Affordable Lights for Affordable Bikes!

Engineered based on a decade of customer feedback, our DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and our signature dimming technology at a price point that is more approachable to new riders, younger riders, and our rapidly growing international customer base!

Be Seen, Ride Safe!

All DL Series Driving Lights are also available in amber & selective yellow lens options at no additional cost. DL Series lenses are robotically sealed to guarantee IP69K waterproof/submersible performance. DL Series lenses are not interchangeable.

Pod Size: 3\" (7.6 cm) x 3\" (7.6 cm)
Watts: 32 Lumens: 3,400
Clear: DNL.DL4.050.W
Amber: DNL.DL4.050.A
Yellow: DNL.DL4.050.Y

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync
Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be \"off\" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent \"washing out\" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

DENALI Plug & Play DialDim Wiring Adapter (1x)

This wiring adapter enables plug-&-play connection between our standard DialDim Lighting Controller and the Ducati DesertX. To install, simply connect the white connector to our DialDim Controller and the remaining connectors in line at the DesertX headlight, horn, and turn signal connectors.

DENALI Frame & Crash Bars Light Mount Ø21-29mm Black

This DENALI Motorcycle Engine Guard/Crash Bar Light Mount Kit allows fitment of any DENALI LED Lights to engine guards, crash bars, or any tube 21mm-29mm in diameter. These light mounts have a unique octagonal inner pro...
