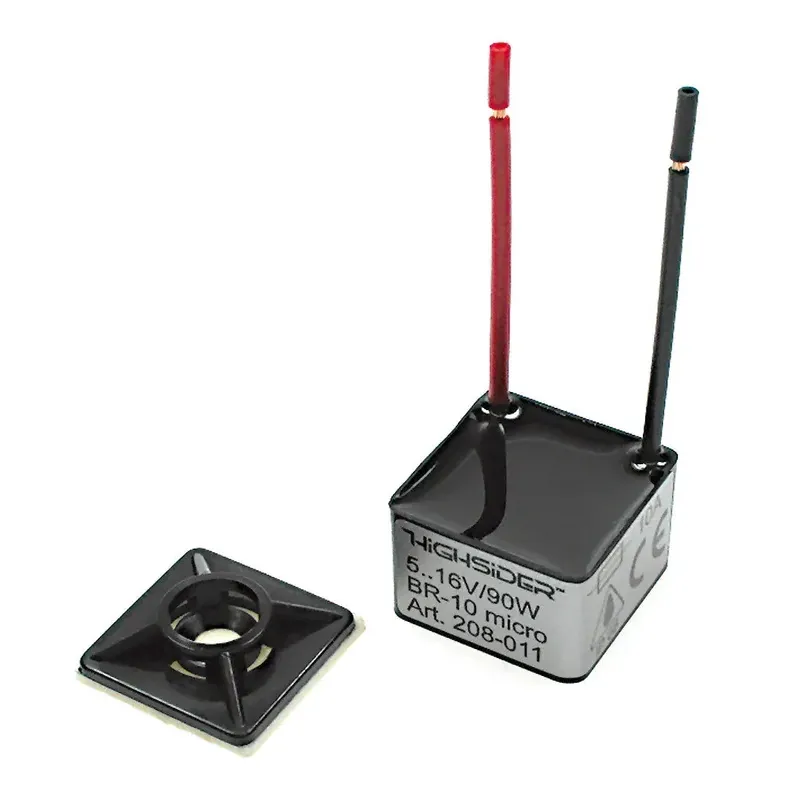

HIGHSIDER BR10-micro digital flasher relay

208-011

New product

HIGHSIDER BR10-micro digital flasher relay, 5-16V/1-90W

More details

$40.86

delay in delivery 1-3 days

- +


More info
HIGHSIDER digital flasher relay

This load-independent digital flasher is ideal for LED conversions. Equipped with undervoltage and overvoltage protection, the relay delivers an absolutely constant blinking frequency and can be used for all blinkers from 1 watt to 21 watts. Other features: waterproof, vibration-proof, wear-free and overload-proof. Made in Germany.

Tailor-made for your bike - the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorbike. With the highest level of quality and functionality, you can easily design your bike according to your wishes.

Dimensions
Length: 20mm
Width: 20mm
Height: 13mm

Technical specifications
Supply voltage: 5V - 16V
Load range: 1W - 90W
No quiescent current consumption

Simple connections via 2 lines
Connect the red cable = 12 V (+) to terminal 49, it is recommended to connect a 10 A fuse upstream.
Connect black wire = ground (-) in series to turn signal switch with terminal 49a

Scope of delivery: 1 piece incl. holder for cable ties

Hints
A 2-pin waterproof Superseal connector can be fitted.
Not suitable for push button switches
Not suitable as a flasher relay set that has a hazard warning flasher function or other additional functions.

Appropriate for this article
HIGHSIDER LED indicator / parking light unit: Item no. 204-260
HIGHSIDER LED rear light / indicator unit, item no. 254-261

Tags

Data sheet
Vehicle brand UNIVERSAL
