SHIN YO 3-pin universal flasher relay, 12V

208-070

New product

SHIN YO 3-pin universal flasher relay with adjustable flashing frequency, 12 V.

More details

$20.45

in stock

- +

Brand: Shin Yo


More info

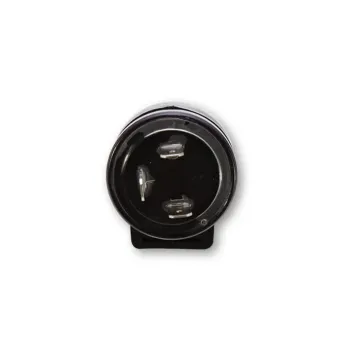

SHIN YO 3-pin universal flasher relay
Universal flasher relay with adjustable flashing frequency. With this relay it is possible to operate a turn signal combination of LED and bulb. There is also a warning flasher function.

Dimensions
Ø 37 mm
Height: 35mm

Technical data and connections
Voltage: 12V
Load consumption: min. 5mA ~ max. 15A
Consumer: 0.06 W min ~ 180 W max

49 B = battery (12V +) input
31 G = mass (-)
49a L = light (to turn signal switch)

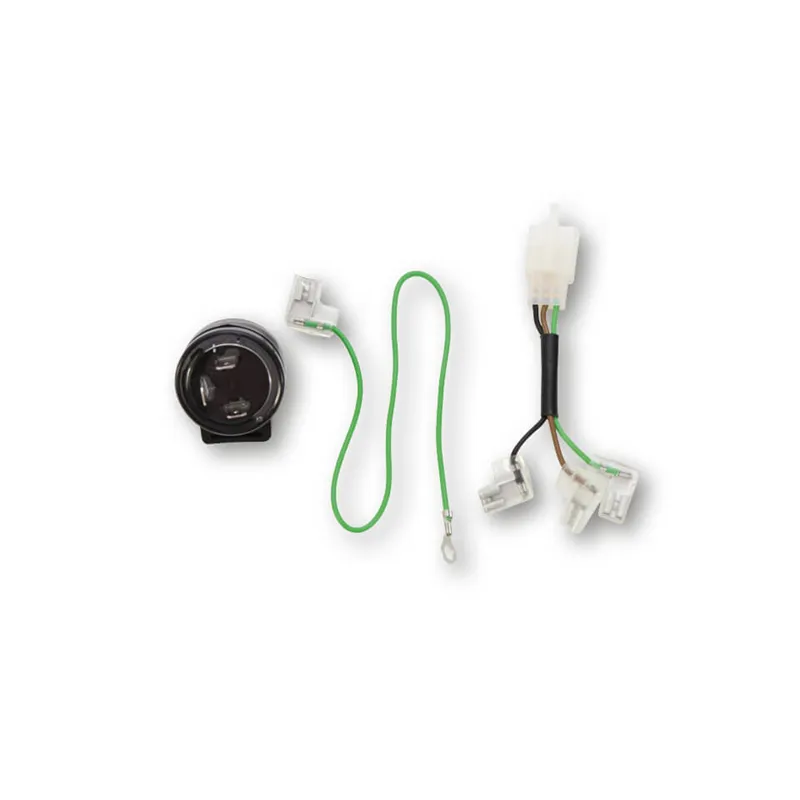

Fasten the separate green cable to G (31) and to the vehicle earth point.
For vehicles. with 3-way connector and 2-pin assignment (49, 49a)
For vehicles with a 3-way plug and 3-pin assignment (49, 49a, 31), use the green cable on the adapter plug (please check whether the assignment is correct).

Scope of delivery: 1 piece

Note: No function at 6V!
Excerpt from the StVO: The flashing frequency must be set to 1.5 Hz +/- 0.5 Hz (90 pulses +/-30 pulses per minute).

Tags

Data sheet
Vehicle brand UNIVERSAL
Height 35.00
Nominal diameter 37.00
