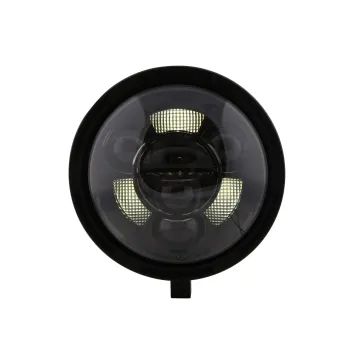

HIGHSIDER FRAME-R1 TYPE 11 7-inch LED headlamp

Brighten Your Ride with the HIGHSIDER FRAME-R1 TYPE 11 7-inch LED Headlamp

Experience unmatched visibility and style on every ride with the HIGHSIDER FRAME-R1 TYPE 11 7-inch LED headlamp. Designed for riders who demand clear, powerful illumination without breaking the bank, this headlamp delivers sharp, focused light that cuts through the darkest roads. Its sleek design not only upgrades your bike’s look but also ensures safer night rides with consistent brightness.

Features & Benefits of the HIGHSIDER FRAME-R1 TYPE 11 7-inch LED Headlamp

• 7-inch diameter: Perfect size for classic and modern motorcycles, offering wide light coverage.
• LED technology: Energy-efficient, long-lasting light that stays bright ride after ride.
• Durable aluminum housing: Protects against weather and road debris for reliable performance.
• Plug-and-play installation: Easy setup saves time and hassle, no special tools needed.
• Sharp beam pattern: Enhances road visibility without blinding oncoming traffic.

Why settle for dim or outdated lighting? The HIGHSIDER FRAME-R1 TYPE 11 headlamp offers clearer vision and increased safety at an affordable price, making it the smart choice for riders who want quality without compromise.

Act fast! This popular headlamp is flying off shelves due to its unbeatable combination of performance and value. Limited stock means you don’t want to wait—upgrade your bike’s lighting today before it’s gone.

Ready to ride brighter? Click “Add to Cart” now and give your motorcycle the lighting boost it deserves with the HIGHSIDER FRAME-R1 TYPE 11 7-inch LED headlamp. Don’t miss out on safer, sharper night rides!

HIGHSIDER FRAME-R1 TYPE 11 LED headlight 7 inch, E approved
- Mounting WITHOUT a cover, there goes the light. -

Every inch counts to place the headlight as close as possible between the two standpipes in the fork. REDUCTION TO THE MAX was the prerequisite for the development of the innovative FRAME headlight mount. Thanks to the purist aluminium ring, it is possible for the first time to mount different LED headlight inserts freestanding on a motorcycle. By deliberately dropping the headlight housing, an unparalleled tight mounting position is made possible and, in addition, better cooling of the LED unit is achieved. On many motorcycles, the H4 or H7 lamp lights up and sparkles more or less. Seeing better usually also means being seen better, which is not unimportant as summer turns to autumn and at a time when cars are increasingly being fitted with bright daytime running lights. If you're looking for a stylish and innovative performance headlight, the FRAME-R1 LED headlight is an excellent choice, whether you want to replace it for better visibility at night, better visibility during the day, or want to give your bike a nicer look. The TYPE 11 LED daytime running light installed is the perfect way to improve visibility during the day. The elliptical lenses combined with powerful LEDs turn night into day and combine a distinct safety plus with a polarizing unique look. The headlamp is available with bottom or side mounting.

Two different mounting systems are available for variable headlamp mounting.
- Side-mount, conventional screw connection on the side of the headlamp bracket
- Bottom-mount, down-mount, screw connection on the triple socket

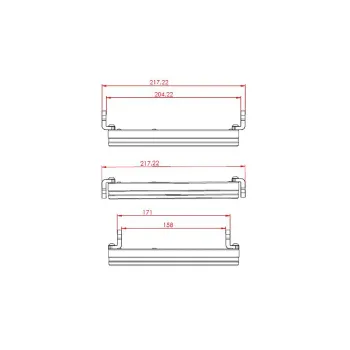

The side-mount brackets can be mounted in three positions, compensating for the 32 mm mounting depth and 46 mm width.

Features:
- Round 7-inch headlight with CNC mounting ring and mounting kit
- Mounting WITHOUT headlight cover
- Improves cooling
- Many mounting options
- Flat mounting
- Modern look, stylishly innovative
- Clear glass
- Reflector black
- Reflector radiates asymmetrical, right-hand traffic only approved, luminous flux
- High, low, parking and daytime running light functions
- E approved, no need to register

Give your bike a distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series will make your bike a showpiece in every way!

Dimensions:
Diameter A = 170 mm
Diameter GA = 165 mm
Diameter I = 160 mm
T = 60 mm
R = 9 mm
Total depth from glass to cooling fins: 99.10 mm

Connections:
Power supply: 3-pin connector
Black wire = ground (-)
White wire = low beam ( )
Blue wire = high beam ( )

TFL:
Black wire = ground (-)
Brown wire = daytime running lights ( )
Gray wire = parking lights ( )

Scope of delivery: 1 piece.
