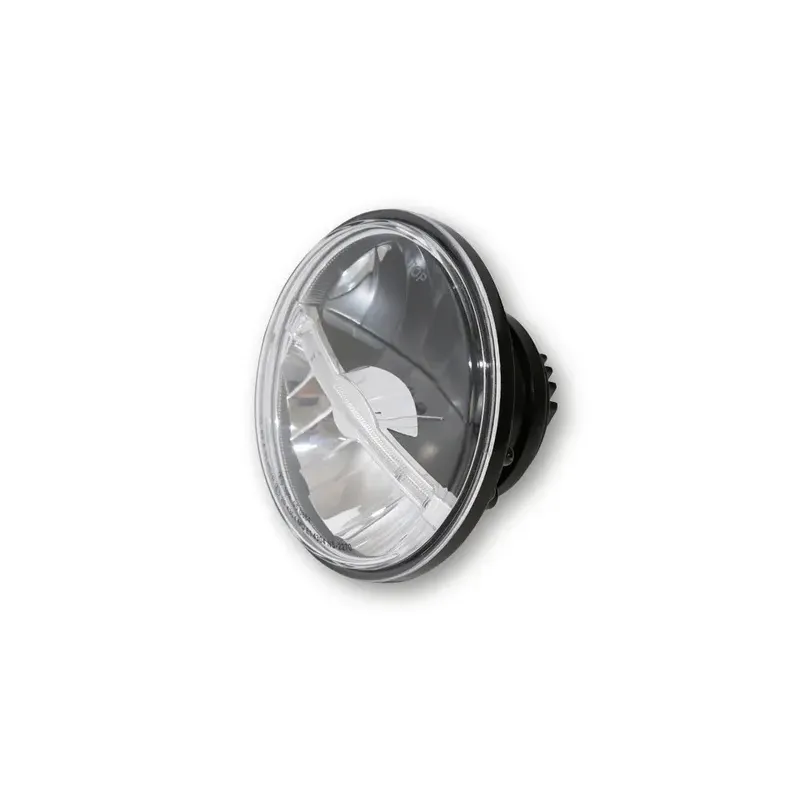

HIGHSIDER LED headlight insert JACKSON, 5 3/4 inch


New product

HIGHSIDER JACKSON LED main headlight insert, round with chrome-plated reflector, 5 3/4 inches, high beam, low beam and standlight bar (light guide system), E-approved.

More details


delay in delivery 1-3 days

- +

More info
HIGHSIDER LED headlight insert JACKSON, 5 3/4 inch

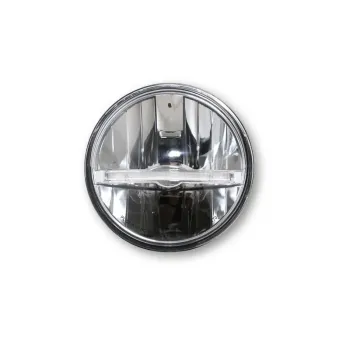

This round, chrome-plated reflector features high, low and parking lights and a clear lens. The parking light function is shown in the middle of the insert as a light bar (Light Guide System). The reflector emits an asymmetrical luminous flux - approved only for right-hand traffic, E-approved.

Eye-catching - give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Diameter A = 148mm
Diameter GA = 134 mm
Diameter I = 128mm
R = 11mm

Technical specifications
Voltage: 12V

Connections with triple plug
black = ground (-)
Blue = low beam (+)
Red = high beam (+)
Separate cables:
Red = parking light/parking light (+)
black = ground (-)

Scope of delivery: 1 piece

Optionally available:
Complete headlight:
5 3/4 inch LED headlight JACKSON, black and chrome: Item no. 223-028 and 223-029
5 3/4 inch headlight #223-014, 223-015
Connector for H4 bulbs, with 210 mm cable #396-042
Does not fit BATES STYLE headlight, 5 3/4 inch (#222-018, -019)
Data sheet
Color Chrome
Size 5 3/4 inch
Type Led
Vehicle brand UNIVERSAL
Shape Round
Nominal diameter 148.00
Illuminant LEDs
Glass Clear
