HIGHSIDER 7 inch LED headlamp HD-STYLE TYPE 2

HIGHSIDER 7 inch LED main headlamp

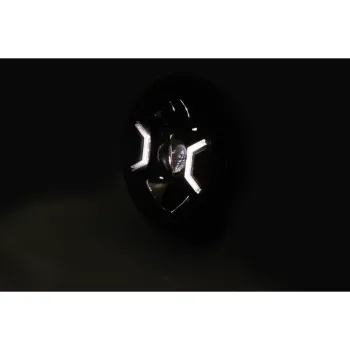

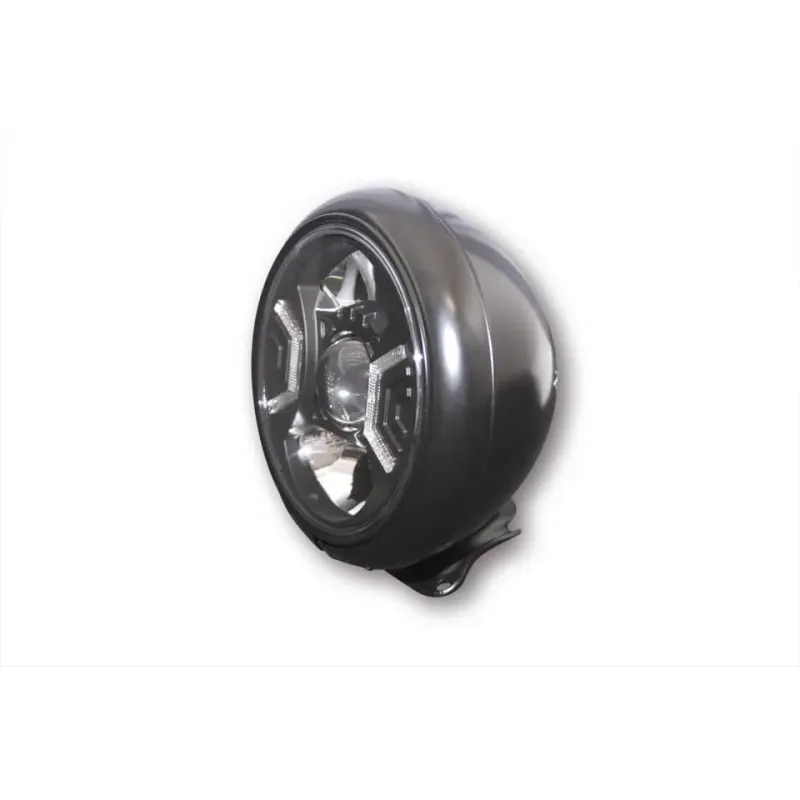

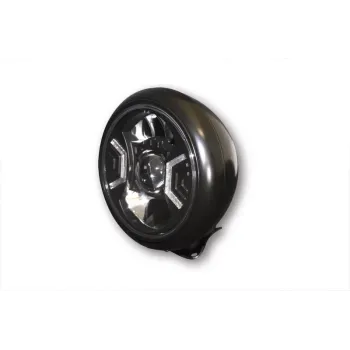

Stylish and innovative Power-LED headlight with front position light in a puristic design. This model comes with a silk-matt black metal housing for bottom mount. The black reflector with a clear lens is equipped with an asymmetric insert - approved only for right-hand driving, E-marked.

Your brightly joy – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a spectacular highlight!

Dimensions:
Housing diameter: 220 mm
Diameter headlight insert: 178 mm
Depth: 155 mm
Hole spacing mounting holes at bracket (center - center): 65 mm

Current consumption at 12,5 volt:
Low beam: 1.6 ampere (20 watt), 12 volt 1450 lumen

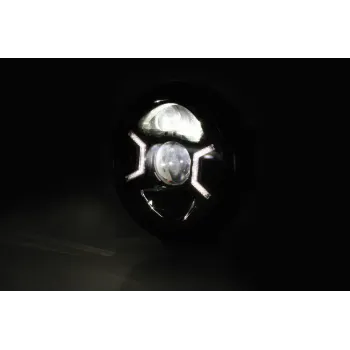

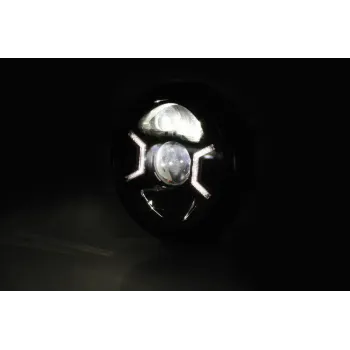

Only top reflector and centre position light are lightning.
High beam: 1.6 ampere (20 watt), 12 volt 1582 lumen
Only top and bottom reflector are lightning. If you use headlight flasher, centre position light will be out.

Cable assignment headlight
The following 3 cables are fixed in one plug:
Black = ground
Red = high beam
Blue = low beam
Additionally 2 cables for parking light
Black = ground
Red = parking light
White = connection for control indicate (to use optionally)

Delivery contents: 1 Pcs. inclusive mating connector with cable for H4 bulb, length: 210 mm
Cable assignment
Green = ground
Blue = high beam
White = low beam

Note
Asymmetric reflector - approved only for right-hand driving.
