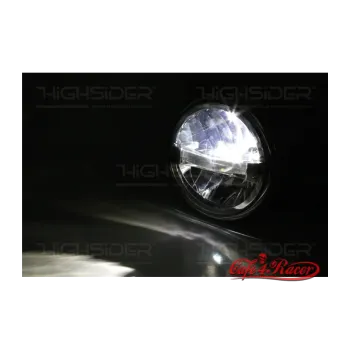

HIGHSIDER 7 inch LED headlight BRITISH-STYLE TYPE 4
Puristic-shaped headlight comes in a dull black metal housing for side mount. This plain design is perfect matching to Classic Bikes, Roadsters and Custom Bikes.
Inside a chromed reflector with a clear lens is equipped with high-beam, low-beam, parking light and daytime running light (DRL). DRL and parking light are installed in a centre strip and ensure a great light image - low-beam emits above the strip, high-beam below. Reflector emits an asymmetric light flux - approved only for right-hand driving, E-marked.
Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Housing diameter (also hole spacing): 190 mm
Diameter headlight insert: 178 mm
Housing depth: 140 mm
Distance mounting holes - Housing front: approx. 47 mm
Distance mounting holes - Housing tail: approx. 80 mm
Side mount with M8 mounting bolt
Black = ground
Blue = low beam, current consumption at 12 volt: 1,8A, 22W
Yellow = high beam, current consumption at 12 volt:1,3A, 13W
Black = ground
Red = daytime running light, current consumption at 12 volt: 1,2A, 14W
White = parking light, current consumption at 12 volt: 0,2A, 2,4W
Delivery contents: 1 piece incl. 3-Pin connector
• Asymmetric reflector - approved only for right-hand driving.
• Customers have to install including 3-Pin connector after mounting reflector
View to plug terminals
High beam (yellow) = right side
Low beam (blue) = on top
Ground (black) = left side
