HIGHSIDER LED headlight insert TYPE 5

226-017

New product

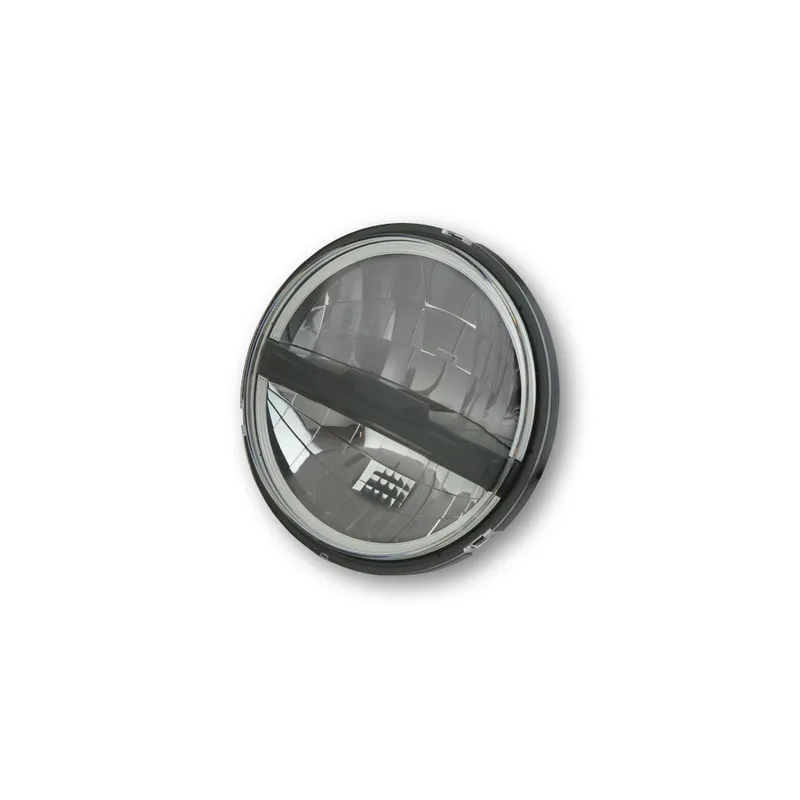

LED main headlight insert TYPE 5, round with chrome-plated reflector and black cover, 5 3/4 inch, high beam, low beam and parking light function E-approved

More details

$236.29

delay in delivery 1-3 days

- +


More info
HIGHSIDER LED headlight insert TYPE 5, E-approved.

This round, chrome-plated reflector with a black bezel and clear lens has high, low and parking light functions.

Also suitable as inserts for exchanging the following vehicles, for example:
Victory Highball
Victory Gunner
Indian Scout Bobber
Indian Scout Sixty

Our highlights - give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

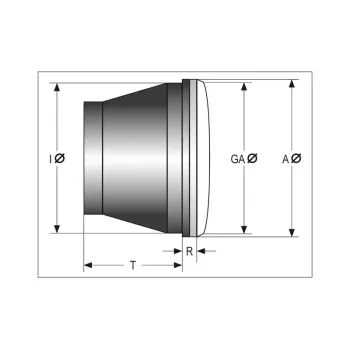

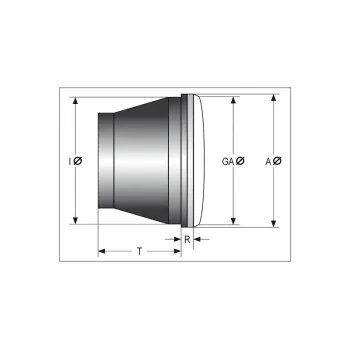

Dimensions:
Diameter A = 145mm
Diameter GA = 133mm
Diameter I = 129mm
D=60mm
R = 10mm
Cable Length: 400mm

Connections:
Power consumption = 3 pin connector
Black wire = ground (-)
Red wire = low beam (+)
White wire = high beam (+)
Brown cable = parking light (+)

Scope of delivery: 1 piece

A notice:
The enclosed 3-pin standard plug must be fitted after the reflector has been installed.

Data sheet
Type Led
Vehicle brand UNIVERSAL
Shape Round
Illuminant LEDs
Glass Clear
