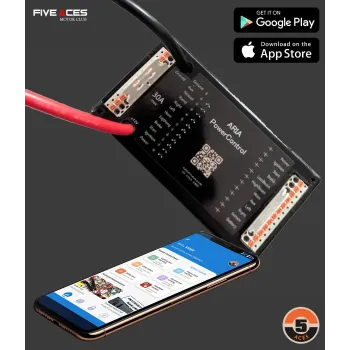

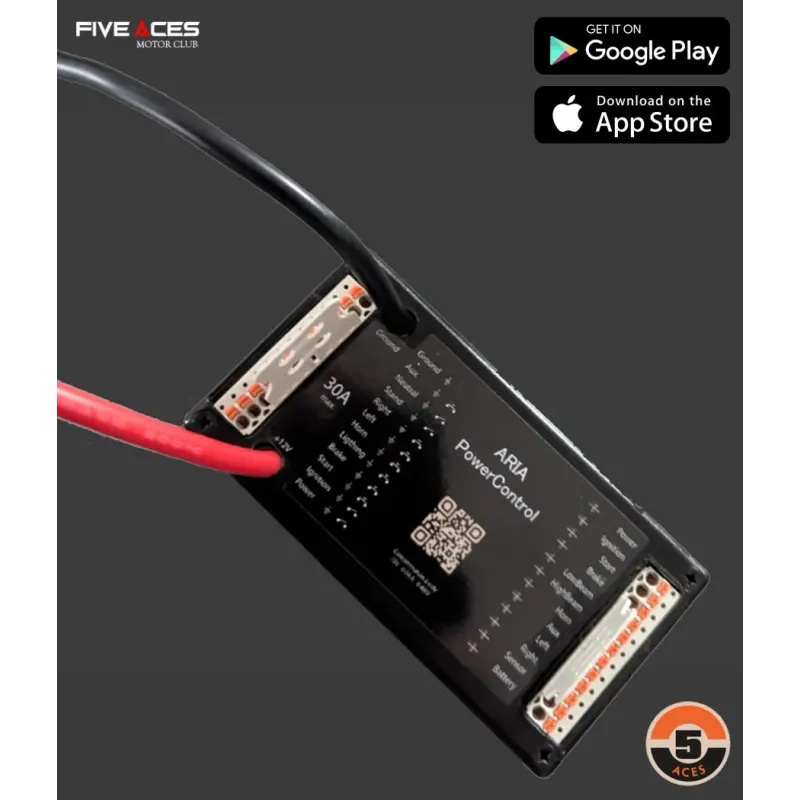

Fiveaces ARIA

Smart Features:

Managed Inputs:

1. Key switch:

• Activates or deactivates the main system of the motorcycle via the ignition key.
• Allows you to secure the power supply of essential equipment (meter, lights, etc.).

2. Engine stop (Ignition):

• Manages the ignition or stopping of the engine via a button or switch.
• Secured to prevent accidental activation.

3. Start:

• Controls the starter relay via a push button.
• Robust design to manage up to 10A for the starter relay (be careful, the starter must not be connected directly).

4. Brake (Brake switch):

• Activates the brake light as soon as the brake is applied.
• Compatible with front and rear brakes.
• 5.Headlight (Lowbeam Headlight):
• Allows you to switch between low beam and high beam.
• Keeps the headlights off during start-up to preserve the battery.

5. Horn:

• Controls the horn output, limited to 3A to protect the circuit.

6. Left indicators and Right indicators:

Constant flashing frequency, compatible with traditional bulbs and LEDs.

Emergency flasher activation possible by pressing both buttons simultaneously.

7. Side stand switch:

• Disables the ignition if the side stand is down, unless the gearbox is in neutral (configurable option).

8. Neutral switch:

• Secures starting by only allowing ignition if the gearbox is in neutral (configurable option).

9. Emergency flasher:

• Simple activation by double pressing the indicator buttons.

Managed outputs:

1. General power supply (Power):

• Powers equipment such as sidelights, meters and taillights.

2. Ignition relay:

• Provides 12V for ignition.

3. Start relay:

• Activates the start relay with a maximum current of 10A.

4. Brake light:

• Provides a dedicated output for the brake light.

5. Front lights (Lowbeam & Highbeam):

• Controls the low and high beams.

6. Horn:

• Manages the modern horn (2.5-3A max).

7. Left and right turn signals:

• Independent outputs for precise management and stable lighting.

Programmable modes via Bluetooth:

1. Easy programming:

• Connect via Bluetooth to the dedicated mobile application to configure the B-Box options.

2. Available options:

• Auto-off of the indicators: Automatically turns off after 50 cycles.
• Headlight control: Switches between switch and button to control the lights.
• Safety management: Activation or deactivation of the side stand and neutral switches.
• Button or switch mode: Adapt the configuration according to your preferences.

Installation:

1. Easy connection:

• Connect the red cable to the +12V of the battery.
• Connect the black cable to the ground (-).
• Use thin cables for the controls (buttons/switches) and cables of at least 0.75 mm² for the outputs (relays and lights).

2. Precautions:

• Keep the control cables away from the ignition cables to avoid interference.
• Check the connections carefully to avoid any short circuit.

3. Professionalism required:

• The installation must be carried out by a qualified professional to ensure safety and compliance with local regulations.

Data sheet

Housing material

ABS plastic (electronic box) 24 mm, 113 mm, 59 mm

Protection index (IP)

IP54

Storage temperature

-30℃~+70℃

Working humidity

10%~90%RH
