Universal digital LCD speedometer SP1

B4 3

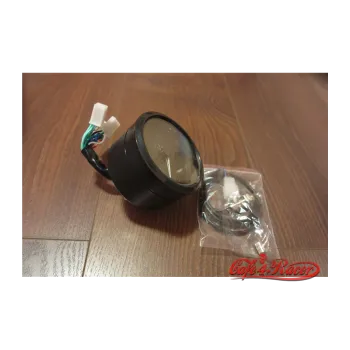

Universal digital LCD speedometer with rev counter in a plastic case. The speed is sensed by a magnet. Speedo is with the ability to connect four additional lights (turn signals, high beam, neutral, turns) supports a fuel gauge indicator, gear engaged and recharge status.This item is suitable for F1,2,4 Cylinders  Motorcycle.

Diameter: 3.66"

In case that colors of wiring are not same as on attached pictures in download section please advise wiring below

9 pin connector

blue is right turn signal

blue high beams

brown/white run lights

orange left turn signal

yellow/black tach

green negative battery

blue/white fuel sender

red positive battery

black positive electric door lock connection

3 pin connector

red/white positive speed sensor

green negative speed sensor

black/white speed sensor signal

6 pin connector

green/red negative neutral

pink negative 1st gear

blue/red negative 2nd gear

green/black negative 3rd gear

yellow/red negative 4th gear

yellow/white negative 5th gear
