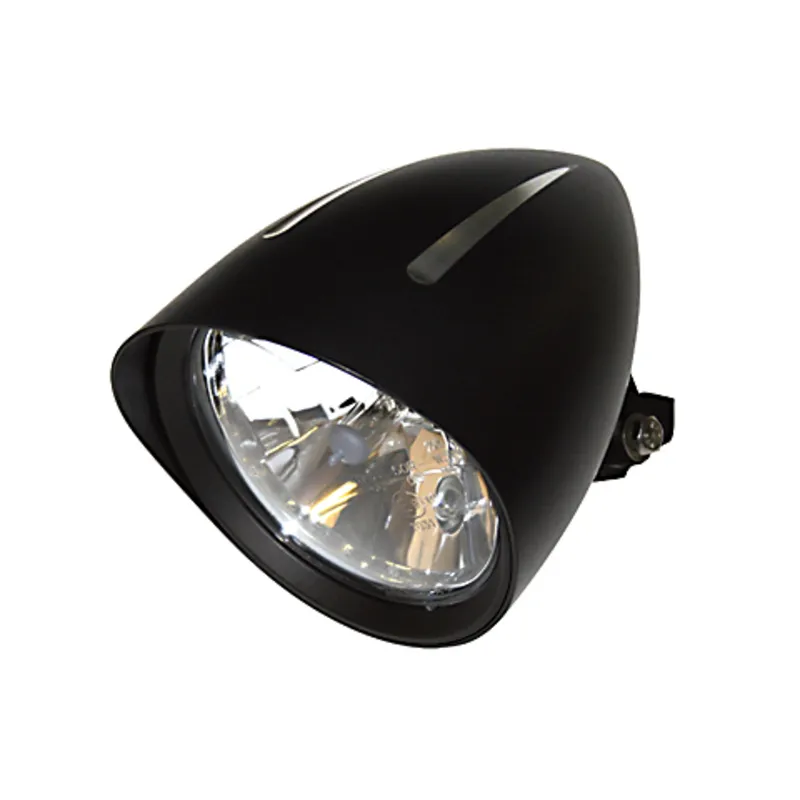

HIGHSIDER headlight CLASSIC 1

223-034

New product

HIGHSIDER headlight CLASSIC 1 EXTREME with peak and 3 CNC milled grooves, 5 3/4 inch H4 12V 60/55W, black aluminum housing, prismatic reflector with parking light, lower attachment, E-approved.

More details

$227.20

delay in delivery 1-3 days

- +


More info
HIGHSIDER 5 3/4 inch headlight CLASSIC 1 EXTREME for lower mounting

H4 halogen main headlight with a high-quality, black aluminum housing with 3 striking, CNC-milled grooves and a nostalgic shade (length: approx. 25 mm) in a retro look. The headlight has an asymmetrical prismatic reflector - approved only for right-hand traffic - and parking light, E-approved.

Eye-catching - give your bike an unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Technical specifications:
Light source: H4, 12V 60/55W
Fastening: below
Diameter: 157mm
Depth: 220mm
Holder center mounting screw to front: 127 mm
Holder gap: 18mm
Fastening: below

Connections:
White wire = low beam (+)
Green wire = H4 bulb ground
Blue wire = high beam (+)
Brown cable = parking light (+)
Black cable = ground parking light (-)

Scope of delivery: 1 piece, consisting of headlight and bulb

Hints:
Asymmetrical reflector - only approved for right-hand traffic!.
Replacement insert: 226-131

Data sheet
Color Black
Material Aluminum
Vehicle brand UNIVERSAL
Shape Round
Nominal diameter 146.00
Depth 230.00
Illuminant H4
Glass Clear
