HIGHSIDER 7 inch LED headlight RENO TYPE 1

223-134

New product

HIGHSIDER 7-inch LED headlight RENO TYPE 1, high-gloss black metal housing with black insert, round, lateral attachment, E-approved

More details

$454.45

delay in delivery 1-3 days

- +


More info

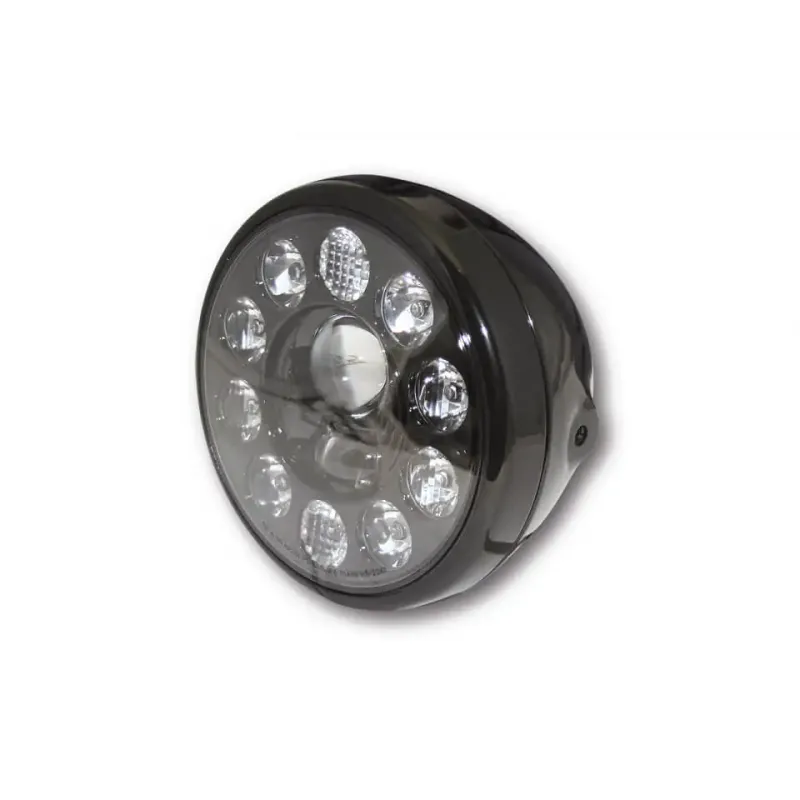

HIGHSIDER 7 inch LED headlight RENO TYPE 1 for side mounting

Innovative power LED headlight with parking light and round, clear glass. The metal housing has a high-gloss black finish and has a chrome-plated, asymmetrical insert - approved only for right-hand traffic - E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions headlight:
Case diameter: 200mm
Diameter headlight insert: 178 mm
Depth: 160mm
Mounting Hole Distance (Center - Center): 170mm
Distance mounting hole (middle) to end of housing: approx. 90 mm
Fastening: on the side with M8 threaded bolts

Technical specifications
Power consumption at 12.5 volts DC:
Low beam: only 1.9 amperes (approx. 23.75 watts).
12 volts 1069 lumens
Only the two inner ellipsoid inserts light up.
High beam: only 1.4 amps (approx. 17.5 watts).
12 volts 1100 lumens
Only the outer LED circle lights up. All LEDs light up when the headlight flasher is activated.

Connections to the reflector in the headlight housing:
Black wire = ground (-)
Red wire = high beam (+)
Blue wire = low beam (+)
Additionally 2 cables for parking light: black = ground (-), red = parking light (+)

Scope of delivery: 1 piece including mating plug (connector plug) with 210 mm cable, for H4 halogen bulbs, connections:
Green wire = ground (-)
Blue wire = high beam (+)
White wire = low beam (+)

Hints
Asymmetrical reflector - approved for right-hand traffic only

Can be ordered optionally
Replacement insert, black: Art. no. 226-011

Data sheet
Type Led
Color Black
Size 7 inch
Material Steel
Vehicle brand UNIVERSAL
Shape Round
Height 200.00
Nominal diameter 178.00
Depth 160.00
Illuminant LEDs
Glass Clear
