KOSO 3-pin universal flasher relay

208-071

New product

Adaptive 3-pin universal flasher relay 12V with adapter cable. 12V, 3-pin, 1-80 watts

More details

$22.23

in stock

- +

Brand: Koso


More info
KOSO 3-pin universal flasher relay, 12V
The adaptive flasher relay determines the respective wattage of the installed flashers. If a turn signal fails or is defective, the flashing frequency of the remaining turn signal increases. You can operate bulbs and LED turn signals at the same time. With adapter cable to HO/KA/YA 3-way plug.

Examples:
2 x 10 watt bulb indicators + 2 x LED indicators
2 x 21 watt bulb indicators + 2 x LED indicators
4 x LED turn signals
The warning flasher function is given.

Dimensions
Diameter: 37mm
Height: 25mm

Occupancy:
- 49 P = battery input, (12V +)
- 31G = Ground (-), (GND)
- 49a L = Light (to the indicator switch), (signal)
- Voltage: 12V
- Load range: 1 - 80 watts
- Use adapter cables with 3-way plugs for Honda / Kawasaki / Yamaha
- Connection on the relay:
• Black on P (Power Supply 49)
• Brown (49a) L (signal)
• Green on 31(-) (GND)
or:
For vehicles with 3-way connector and 2-pin assignment (49, 49a):
• Green (separate) to GND (31) and to the vehicle ground point
For vehicles with 3-way connector and 3-pin assignment (49, 49a, 31):
• Use green (adapter plug).

Note: Please check whether the assignment is correct.

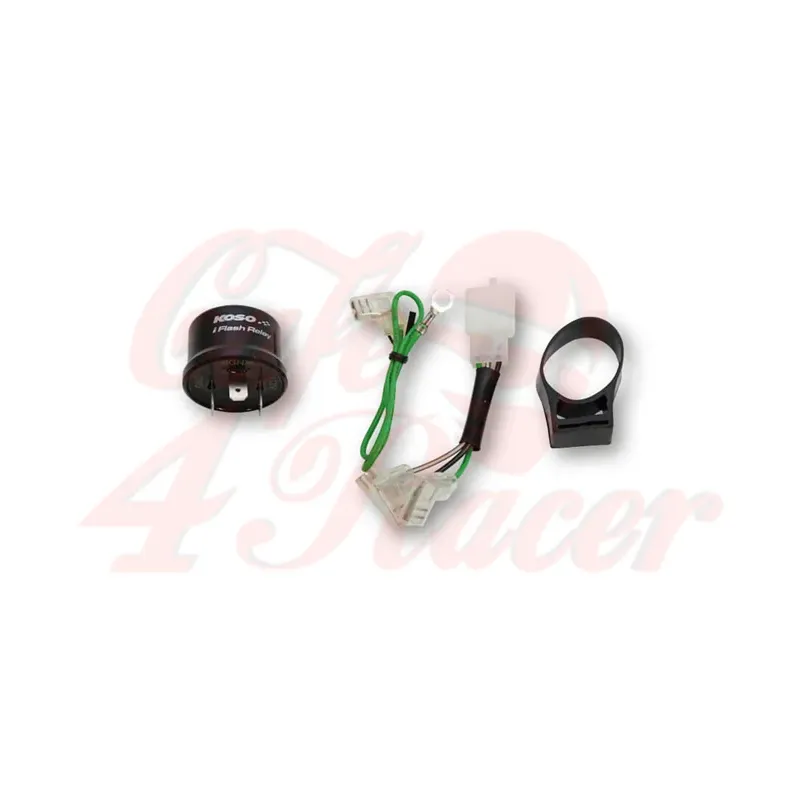

Scope of delivery:
1 * Flasher Relay
1 * Ground Wire
1 x HO/KA/YA adapter cable
1 * Rubber Holder
Instructions: 208-071A KOSO

Tags

Data sheet
Vehicle brand UNIVERSAL
Height 25.00
Nominal diameter 37.00
