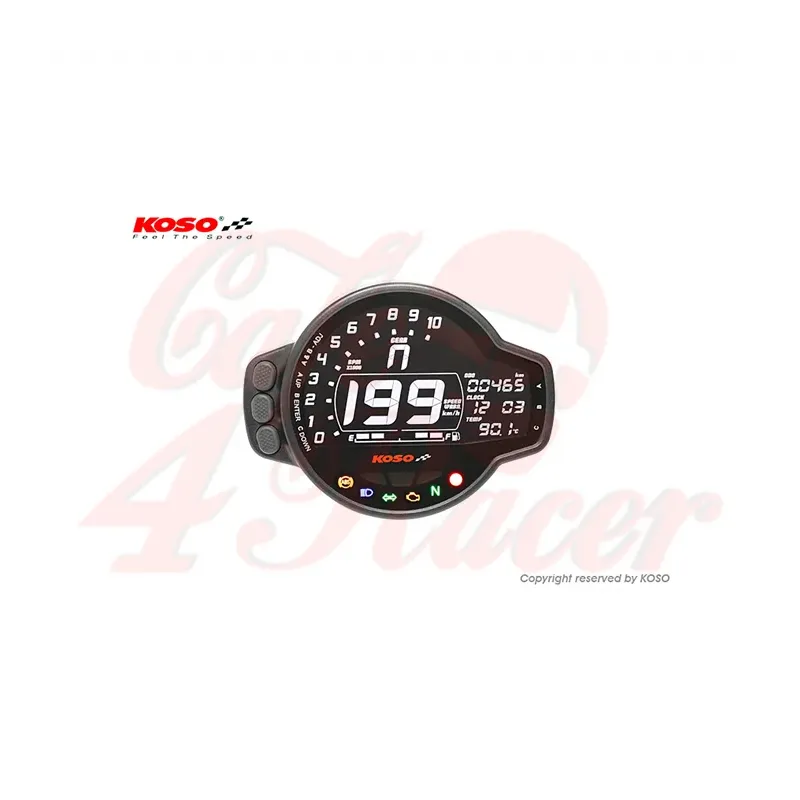

KOSO Digital Multifunction Cockpit MS-01

Stay Ahead on Every Ride with the KOSO Digital Multifunction Cockpit MS-01

Experience clear, real-time data that keeps you in control and focused on the road. The KOSO Digital Multifunction Cockpit MS-01 delivers essential riding info in one compact, easy-to-read display—perfect for riders who want precision without breaking the bank. Track your speed, distance, and engine performance effortlessly, making every ride safer and more enjoyable.

Features & Benefits of the KOSO Digital Multifunction Cockpit MS-01

• Multi-Function Display: Shows speed, trip distance, total mileage, and engine RPM all at a glance.
• Compact & Lightweight Design: Fits seamlessly on any bike without adding bulk or distraction.
• Easy Installation: Plug-and-play setup means you’re ready to ride in minutes.
• Durable & Weather-Resistant: Built to withstand rain, dust, and vibrations on tough rides.
• Affordable Precision: Get advanced digital monitoring without the premium price tag.

Technical Specifications

• Display Type: LCD digital screen with backlight for night visibility
• Speed Range: 0-299 km/h (or mph)
• RPM Range: Up to 19,999 RPM
• Power Supply: 12V DC compatible
• Dimensions: 70mm x 45mm x 25mm

Don’t miss out! The KOSO Digital Multifunction Cockpit MS-01 is in high demand among riders who want reliable, clear data without overspending. Stock is limited and moving fast—once it’s gone, you’ll have to wait for the next shipment.

Upgrade your ride today! Add the KOSO Digital Multifunction Cockpit MS-01 to your cart now and enjoy smarter, safer rides tomorrow.

KOSO digital multifunction cockpit MS-01, speedometer with ABE

Product Information:

Speed:
Display readout: 0 - 199 km/h (0-124 MPH) switchable
Display unit: 1 km/h (MPH)
speed unit:
Setting unit: km (km/h) – mile (MPH)

Internal and external odometer:
Display reading: 0 -99.999 km (mile) jumps to 0 when exceeded
Display unit: 1 km (mile)

Trip meter A – B:
Display shows: 0 – 9,999.9 km (mile) jumps to 0 when exceeded
Display unit: 0.1 km (mile)

Speed Warning:
Setting range: 30 – 199 km/h (19 – 124 MPH)
Warning light comes on when the set value (inclusive value) is exceeded.
Setting unit: 1 km/h (MPH)

Tire Circumference:
Adjustment range: 300 – 2,500 mm
Adjustment unit: 1 mm

Speed sensor sampling points:
Display reading: 1 – 40 points

gear indicator:
Display indication: OFF, top gear, N and top gear, show all (N/1-6)

Workshop interval:
Setting range: 500 – 16,000 km (300 – 10,000 miles)
Setting unit: 100 km (mile)

Tachometer:
Display reading: 0 – 10,000 RPM / 0 – 13,000 RPM
Display unit: 0 – 10,000 RPM (250 RPM each step)
0 – 13,000 RPM (250 RPM each stage)

RPM - input pulse:
Setting range: POSI / NEGA

RPM signal:
Setting range: P-0.5 / P-1 / P-1.5 / P2 / P2.5 / P3 / P4 / P5 / P6 / P9 / P10 / P11 / P12 /P17 / P18 / P23 / P24 / P34 / P36

Value 1 speed warning light:
Display reading: 0 -10,000 RPM
Setting range: 3,000 – 9,750 RPM
Display reading: 0 – 13,000 RPM
Setting range: 3,000 – 12,750 RPM
Warning light lights up (green) when the set value (inclusive of the value) is exceeded.

Value 2 speed warning light:
Display reading: 0 – 10,000 RPM
Setting range: 3,000 – 9,750 RPM
Display reading: 0 – 13,000 RPM
Setting range: 3,000 – 12,750 RPM
Warning light lights up (red) when the set value (inclusive value) is exceeded.

Value 3 speed flash:
Display reading: 0 – 10,000 RPM
Setting range: 3,250 – 10,000 RPM
Display reading: 0 -13,000 RPM
Unit of adjustment: 3,250 – 13,000 RPM
Warning light flashes (green+red) when the set value (including the value) is exceeded.
Setting unit: 100 RPM

Temperature Record & Maximum Temperature Record
Display:
1.OFF
2. Cylinder head temperature:
P-1 -20 – 200°C (-4 – 392°F)
P-2 -40 – 185°C (-40 – 365°F)
P-3 -20 – 220°C (-4 – 428°F)
P-4 -20 – 200°F (-4 – 392°F)
P-5 -20 – 120°C (-4 – 248°F)
P-6 -30 – 200°C (-22 - 392°F)
P-1A -20 – 200°C (-4 – 392°F)
P-2A -40 – 185°C (-40 – 365°F)
P-5A -20 – 120°C (-4 – 248°F)
P-6A -30 – 200°C (-22 – 392°F)
3. Temperature sensor
P-250 0 – 250°C (32 – 482°F)

thermometer unit:
Setting range: °C / °F

Temperature warning:
Setting range: 50 -180°C (122 - 356°F)
Warning light comes on when the set value (inclusive value) is exceeded.
Setting unit: 5°C (3°F)

Fuel Gauge:
Setting range: OFF / 100 ohms / 250 ohms / 270 ohms / 390 ohms / 510 ohms / 1200 ohms / fuel switch / USER

Fuel reserve indicator:
Setting range: 0 – 3 bars
Warning light lights up when the set value (including the value) is undershot.
Setting unit: 1 bar

Watch:
Setting range: 1:00 – 12:59 (12h)

Volt meter:
Display reading: 8.0 – 18.0 V
Display unit: 0.1V

Low Voltage Warning:
Adjustment range: 8.0 V – 13.0 V
Warning light comes on when the set value (inclusive value) is exceeded.
Setting unit: 0.1V

Background Brightness:
Adjustment range: 1-5 (darkest) – 5-5 (brightest)

SECTION:
Setting range: ON / OFF

Air to fuel ratio:
Setting range: ON / OFF

Air to fuel ratio:
Display reading: 12.1 – 17.5
Display unit: 0.1

Required voltage:
DC 12V

Required outside temperature:
-10 - +60°C

Specifications:
JIS D 0203(S2)

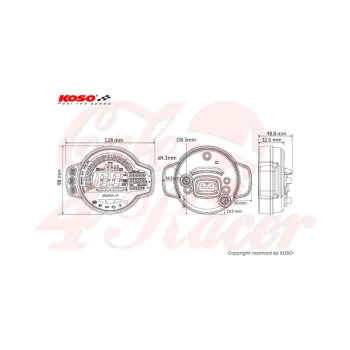

Size:
128*98*48.8mm

Weight:
about 200 g
Warning indicators:
ABS (yellow)
high beam (blue)
blinker (green)
Check engine light (yellow)
neutral (green)
warning light (red)
