HIGHSIDER LED main headlight insert TYP 7, black reflector 5 3/4 inch

226-021

New product

5 3/4 inch LED main headlight insert TYPE 7 with stand light ring, round


In different colors available.

More details

$236.29

delay in delivery 1-3 days

- +


More info

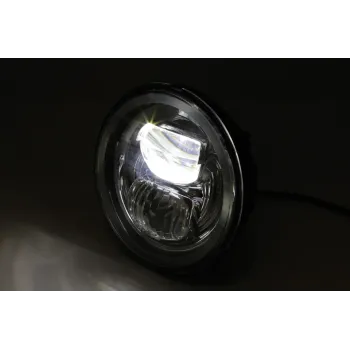

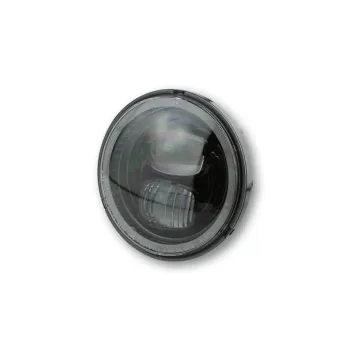

HIGHSIDER LED main headlight insert TYP 7 with parking light ring, 5 3/4 inch, E-marked.

Round, chromed insert with high-beam, low-beam and parking light ring. The daytime running light is in the middle in a strip and the low beam is in the upper half of the insert. Is the high beam lighting on shine the light halves upper and bottom.

Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

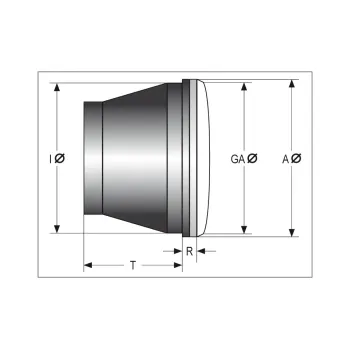

Dimensions
Diameter A = 143 mm
Diameter GA = 133 mm
Diameter I = 131 mm, T = 43 mm, R = 12 mm
Cable length = 400 mm

Cable assignment:
Plug = 3-pins
White = low beam (+)
Red = high beam (+)
Black = ground (-)
Green = parking light (+)


Data sheet
Type Led
